IC Card Meter
  • Single-phase electronic pre-paid watthour meter
  • 1 单相电子式预付费电能表-.jpg
  • 1 单相电子式预付费电能表--.jpg

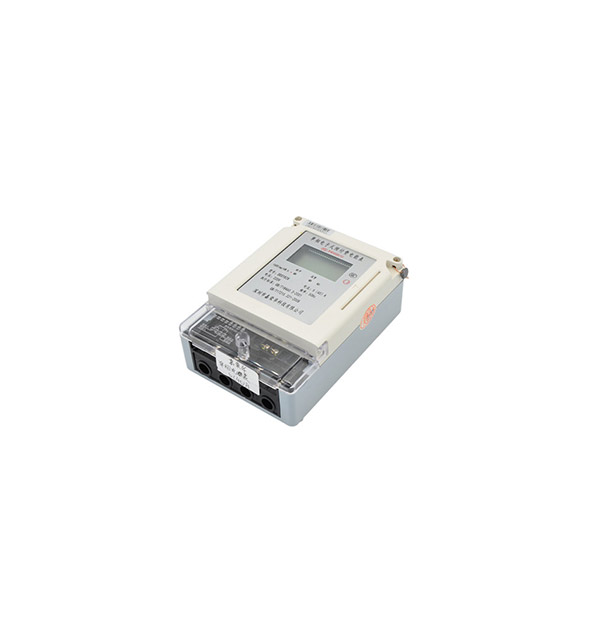

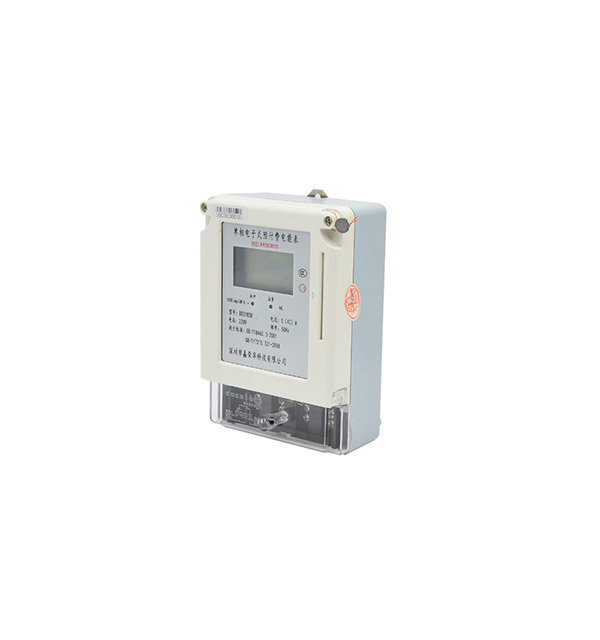

Single-phase electronic pre-paid watthour meter

Type:IC Card Meter

Introduction:DDS electronic single-phase pre-paid watt-hour meter (hereinafter referred to as the meter) using microelectronic technology measurement, in line with GB / T17215-1998GB / T18460-2001 standards, the use of fully shielded, fully sealed structure, SCM system for...

Service Hotline:400 992 5080

PurchaseOnline consultation

  • Description
  • Parameter

Product use

DDS electronic single-phase pre-paid watt-hour meter (hereinafter referred to as the meter) using microelectronic technology measurement, in line with GB / T17215-1998GB / T18460-2001 standards, the use of fully shielded, fully sealed structure, SCM system for data collection, processing and Save, with anti-electromagnetic interference, low self-consumption, high precision, anti-theft, high overload, long life and other characteristics.


Product features



Application of computer management, electricity purchase first electricity.

Limits the use of power within the rated current range (limited by the power supply department).

A table of a card, special card, lost card without losing electricity, make up card reuse.

Electric card can bidirectional data transmission, automatic power-off alarm users to purchase electricity.

Electricity is zero, automatic power-off; and a certain anti-theft software design.

he product meets the GB / T17215-2002 standards for three-phase electronic watt-hour meter all the technical requirements.

Technical indicators

Rated frequency: 50Hz

Relative humidity: <90%

Working voltage: 0.8 ~ 1.2 rated voltage

Operating voltage limit: 0.7 ~ 1.3 rated voltage

Normal working temperature: -25 ℃ ~ +55 ℃

Extreme working temperature: -35 ℃ ~ +65 ℃

Dimensions: 190mm * 108mm * 60mm

Weight: about 0.80kg

Power consumption: voltage loop = 1.5W and 4VA

Executive standard:GB/T18460.3-2001GB/T17215-2008


Order:Single-phase electronic pre-paid watthour meter
