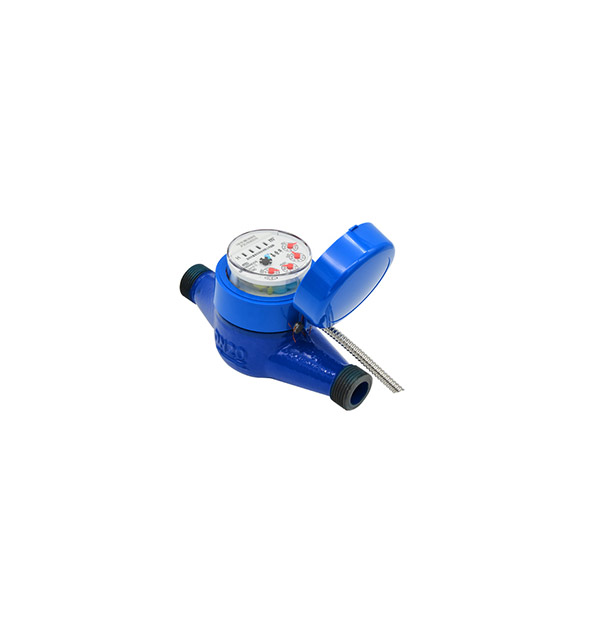

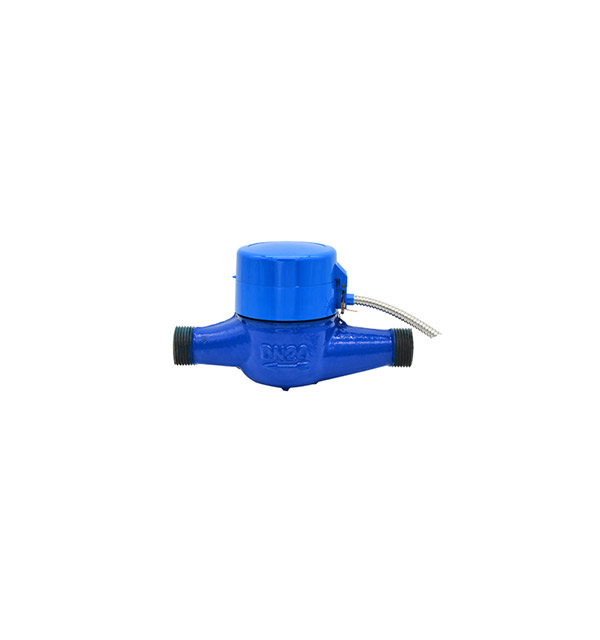

Direct-reading remote small-diameter cold water meter

Type：Optical Direct Reading Meter

Introduction：Used to measure the total amount of drinking water flowing through the water pipe and through the M-BUS bus or 485 bus to the secondary instrument.

Service Hotline:008615767831427

Purchase Online consultation

Description
Parameter

Product use

Used to measure the total amount of drinking water flowing through the water pipe and through the M-BUS bus or 485 bus to the secondary instrument.

Product features

		Built-in CPU, memory chip and communication module (RS485 \ M-BUS).
		Just when the meter data collection power supply, read by the photoelectric meter word round wheel coding, the CPU to determine the number generated by the M_BUS bus or 485 bus output.
		The meter uses a detachable screw-wing water meter, the counter is separated from the underlying structure, the reading remains clear, the counter can be replaced without stopping the water.
		Maintenance of the meter need not be removed from the pipe.

Use condition

Water temperature ≤30 ℃ (cold water meter)
Water temperature ≤ 90 ℃ (hot water meter)
Water pressure ≤ 1Mpa water meter can not be immersed in water

Signal type

Optical encoding passive direct reading technology, support for DL / T 645, CJ-T188, MODBUS, industry-specific or user-specified protocol protocol; Communication transmission maximum distance: 300m; Communication transmission rate: 1200bps, 2400bps, 4800bps, 9600bps.

Maximum allowable error

1, the maximum allowable error is ± 5% in the low zone from the minimum flow rate (Q1) to the lower flow rate (Q2).
2, The maximum allowable error is ± 2% (hot water meter) ± 2.5% from the upper zone including flow rate (Q2) to overload zone (Q4).

TECHNICAL PARAMETER

Model	Nominal diameter MM	Level of accuracy	Commonly used flow Q3 M3/H	Minimum reading M3	Maximum reading M3
LXLC-50	50	level 2	40	0.01	999999
LXLC-65	65	level 2	63	0.01	999999
LXLC-80	80	level 2	63	0.01	999999
LXLC-100	100	level 2	100	0.01	999999
LXLC-125	125	level 2	160	0.01	999999
LXLC-150	150	level 2	250	0.1	999999
LXLC-200	200	level 2	400	1.0	999999
LXLC-250	250	level 2	630	10	999999
LXLC-300	300	level 2	1000	10	999999

OUTLINE SIZE

Nominal diameter mm	Length L	Width K	Total height H	Flange distance D	Center high H1	Flange hole diameter	Flange hole number
DN50	280	172	200	140	80	18	4
DN65	280	172	200	140	80	18	4
DN80	225	200	233	160	95	18	8
DN100	250	220	243	180	105	18	8
DN125	250	250	290	210	165	18	8
DN150	300	285	300	240	135	18	8
DN200	350	340	348	295	162	18	8
DN250	400	400	430	350	232	12	12
DN300	500	492	660	400	438	12	12
Flange connection according to GB4216.4-84 "10 bar gray cast iron pipe flange size"
