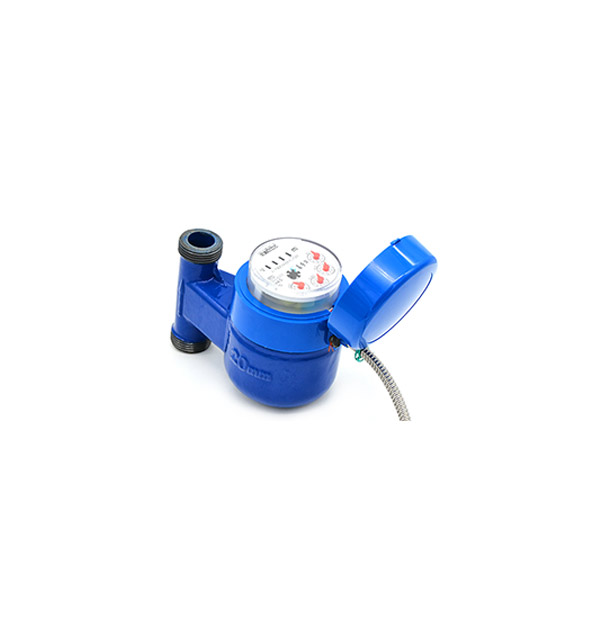

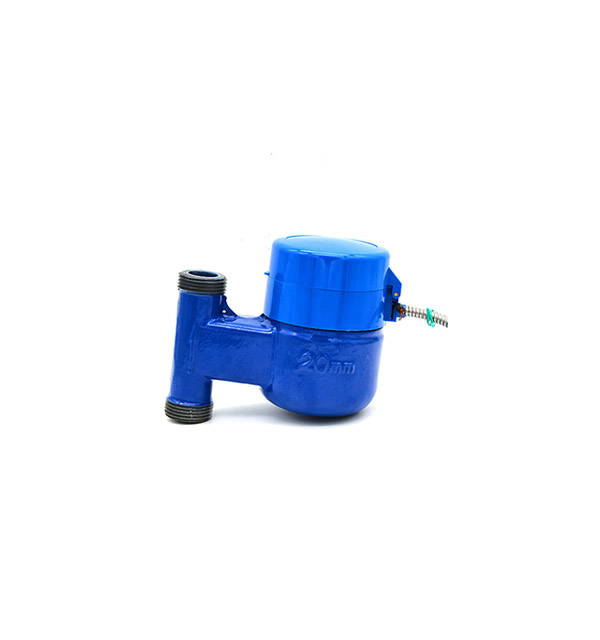

Direct reading remote small diameter vertical water meter

Type：Optical Direct Reading Meter

Introduction：Optical direct reading meter uses optical direct reading technology to read the wheel data, compared with the traditional pulse table, it can reduce the reading error to zero, automatic meter reading system is the zero-error electromechanical conversion electr...

Service Hotline:400 992 5080

Purchase Online consultation

Description
Parameter

Product Brief

Optical direct reading meter uses optical direct reading technology to read the wheel data, compared with the traditional pulse table, it can reduce the reading error to zero, automatic meter reading system is the zero-error electromechanical conversion electronic remote meter. Optical direct reading water meter with smart meter reading system equipment to complete the smart copy of the district water, electricity, gas meter data, and network data center and settlement center to share.

Product features

		Reading character wheel data directly, it reduces the reading error to zero compared to traditional pulse tables.
		Low-power design requires power supply only when reading.
		The use of rotor-type metering structure, high precision, easy meter reading, good looks.
		The use of rotor-type metering structure, high precision, easy meter reading, good looks.
		Conforms to the standard "Electronic Remote Water Meter" (CJ / T 224-2012).
		Flow performance in line with GB / T 778.1 ~ 3-2007 standards, accuracy rating: Level 2.
		Compatible with a variety of communication protocols; DL / T645, CJ / T188, internal agreement or other customer specified.
		Meet EMC, ESD, EMI and other electronic products in the electromagnetic compatibility design requirements.
		Combined with the host computer system, the establishment of remote automatic meter reading management system, the real realization of meter reading, monitoring automation.

Technical Parameter

Model: LXS-15 ~ 40;
Operating voltage: DC24 ~ 42V (MBUS communication interface)
DC12 ~ 24V (RS-485 communication interface)

MBUS communication interface: meter reading working current ≤10.0mA; Static operating current ≤1.5 mA
RS-485 communication interface: meter reading current ≤ 5.0mA; Static working current ≤1.0mA

Working environment: water temperature: 0.1 ℃ ~ +45 ℃; Humidity: 0 ~ 95% RH;
Temperature class: T30 (cold water); T90 (hot water)

Storage temperature: -25 ℃ ~ +65 ℃;
Allow water pressure: 1 MPa;
Pressure loss: 0.063 Mpa;
Communication with the host computer: M-bus field bus;
(Or RS-485 bus)

Communication transmission rate: 1200/2400/4800/9600;
Communication protocols: DL / T645, CJ / T 188 and internal protocols
(Or user-specified protocol);
Communication transmission distance: 300m

Bus pin ESD protection over 10kV;
Short circuit current protection
For the bus open, short circuit, idle fault protection;
Waterproof rating: IP68
