DT (S)

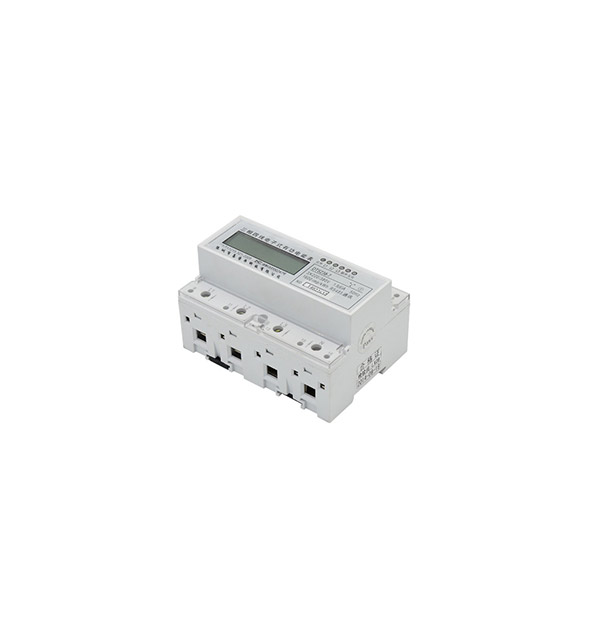

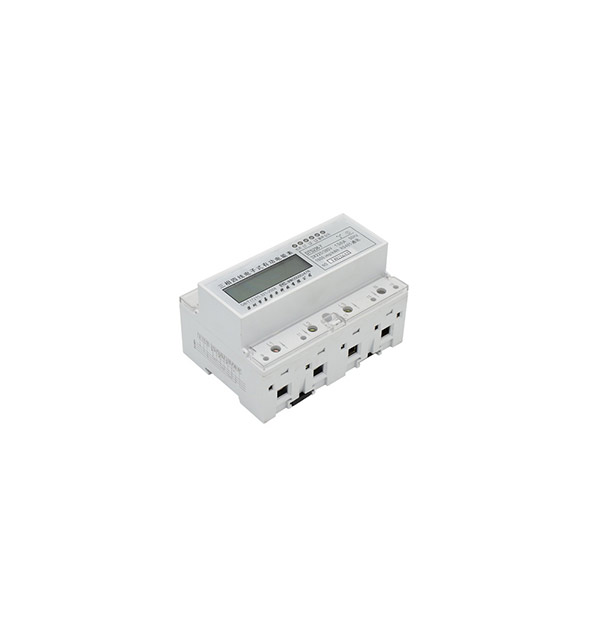

S238-7 series of three-phase rail-type electronic energy meter is a new
product launched by our company, which uses advanced special two-way
energy metering digital circuit chip and SMT manufacturing process for
the measurement of three-phase AC circuit Active or
reactive energy, the counter display, which is characterized by two-way
power measurement technology, anti-theft, high precision, high
reliability, high overload, low power consumption, light weight, low
cost. Using 35mmDIN standard rail installation, in line with DINEN50022 standard. 7 very wide (modulus 12.5m), in line with JB / T7121-1993 standards. Widely used in circuit breaker installation box, complete sets of equipment.
The product is suitable for ambient temperature of 0-40 ° C ~ +75 ℃, relative humidity less than 85% of the conditions used.
The
product meets the GB / T17882-1999, GB / T17215.321-2008 standards for
three-phase electronic watt-hour meter all the technical requirements.
Two-way active energy meter, long-term work does not need to be adjusted.
Three-phase power supply, one or two phase power, measurement accuracy is not affected.
Wide voltage, current, operating temperature range.
5 + 1 step counter display or 5 + 1 6 + 1 5 + 2 LCD digital display.
When the rated voltage, rated frequency and power factor are COSФ = 1, the watt-hour meter is active ≥0.002Ib (through transformer connection), no ≥0.003Ib (through transformer connection), active ≥0.004 IB (direct access), reactive power ≥ 0.005Ib (direct access), the meter should be able to continuously measure the power.
When 115% of the rated voltage is applied and the current circuit is open, the meter test output should not generate more than one pulse.
Measured
three-phase voltage and current through their respective sampling
circuit into an appropriate level input to the two-way electrical energy
metering special digital integrated circuits, the output and the
measured input / reactive power proportional to the pulse signal after
frequency division, respectively Driven with / without value of cloth into the motor meter, to achieve three-phase energy metering. Meter with power test pulse and output. The
table uses three-phase power supply, in the absence of phase (the lack
of phase indicator goes out phase A, B phase, C phase, respectively) can
still work properly.
DT (S) S / DXS238 series three-phase electronic meter terminal wiring as shown below:
(1) DTS type three-phase four-wire electronic energy meter direct wiring diagram |
|
(2) DTS-type three-phase four-wire electronic meter by the current transformer wiring diagram |
|
|
|
(3) DSS-type three-phase three-phase electronic energy meter direct wiring diagram |
|
(4) DSS-type three-phase three-wire electronic meter by the current transformer wiring diagram |
|
|
|
(5) DSS-type three-phase three-wire electronic meter by the current transformer wiring diagram |
|
(5) Power test output diagram |
|
|
|
Terminals |
Description |
L1 |
L1 phase line (A phase) |
L2 |
L2 phase line (phase B) |
L3 |
L3 phase (C phase) |
N |
Neutral (zero line) |
15 or 16 |
Passive remote energy pulse output (can be customized for AMR) |
7 or 8 |
Passive close-range power pulse output |
9.11 or 13 |
Voltage function terminals, only when the watt-hour meter through the current and voltage transformer access |
Installation and use
Rated frequency: 50Hz/60Hz
Power consumption: voltage circuit ≤ 1w and 10VA (single phase)
Power consumption: current circuit ≤ 1VA (single phase)
Environmental conditions: Calibration temperature -25 ~ +55 ℃
Environmental conditions: the maximum operating temperature of -40 ~ +70 ℃
Environmental conditions: relative humidity ≤ 85%
Net weight: three-phase three-wire about 0.6kg, three-phase four-wire about 0.7kg
Product number
|
level of accuracy
|
Specification |
Power test pulse constant
|
|
DT(S)S238-7 |
Active 1.0 |
DSS238-7 Three-phase three-wire 3X100V 3X380V |
3X1.5(6)A |
The pulse constant is based on the power meter |
3X5(20)A |
||||
3X10(40)A |
||||
3X15(60)A |
||||
3X20(80)A |
||||
DTS238-7 Three-phase four-wire 3X220/380V |
3X1.5(6)A |
|||
3X5(20)A |
||||
3X10(60)A |
||||
3X57.7/100V |
3X20(80)A |
|||
3x57.7/100v |
3x1.5(6) |
Basic error
Active 1.0, reactive 2.0
