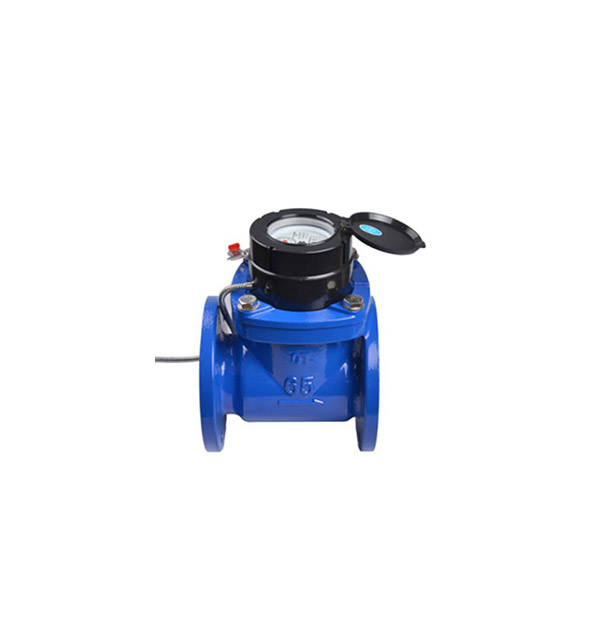

Direct reading long-range large diameter water meter

Type:Optical Direct Reading Meter

Introduction:Used to measure the total amount of drinking water flowing through the water pipe and through the M-BUS bus or 485 bus to the secondary instrument.

Service Hotline:008613590422081

PurchaseOnline consultation

  • Description
  • Parameter

Product use

Used to measure the total amount of drinking water flowing through the water pipe and through the M-BUS bus or 485 bus to the secondary instrument.


Product features



Built-in CPU, memory chip and communication module (RS485 \ M-BUS)

Just when the meter data collection power supply, read by the photoelectric meter word round wheel coding, the CPU to determine the number generated by the M_BUS bus or 485 bus output.

The meter uses a detachable screw-wing water meter, the counter is separated from the underlying structure, the reading remains clear, the counter can be replaced without stopping the water.

Maintenance of the meter need not be removed from the pipe.


Use condition

Water temperature ≤30 ℃ (cold water meter)
Water temperature ≤ 90 ℃ (hot water meter)
Water pressure ≤ 1Mpa water meter can not be immersed in water

Signal type

Optical encoding passive direct reading technology, support for DL / T 645, CJ-T188, MODBUS, industry-specific or user-specified protocol protocol; Communication transmission maximum distance: 300m; Communication transmission rate: 1200bps, 2400bps, 4800bps, 9600bps.

Maximum allowable error

1, the maximum allowable error is ± 5% in the low zone from the minimum flow rate (Q1) to the lower flow rate (Q2).
2, The maximum allowable error is ± 2% (hot water meter) ± 2.5% from the upper zone including flow rate (Q2) to overload zone (Q4).


TECHNICAL PARAMETER

Model
Nominal diameter
MM
level of accuracy
Commonly used flow Q3
M3/H
Minimum reading
M3
Maximum reading
M3
LXLC-50
50
level 2
40 0.01
999999
LXLC-65
65
level 2
63
0.01
999999
LXLC-80
80
level 2
63
0.01
999999
LXLC-100
100
level 2
100
0.01
999999
LXLC-125
125
level 2
160
0.01
999999
LXLC-150
150
level 2
250
0.1
999999
LXLC-200
200
level 2
400
1.0 999999
LXLC-250
250
level 2
630
10 999999
LXLC-300
300
level 2
1000
10 999999



OUTLINE SIZE

Nominal diameter mm
Length L
Width K
Total height H
Flange distance D
Center high H1
Flange hole diameter
Flange hole number
DN50
280
172
200 140
80
18
4
DN65
280
172
200
140
80
18
4
DN80
225
200
233
160
95
18
8
DN100
250
220
243 180
105
18
8
DN125
250
250
290
210
165
18
8
DN150
300
285
300
240
135
18 8
DN200
350
340
348
295 162
18 8
DN250
400
400

430

350 232
12 12
DN300
500
492
660
400 438
12 12
Flange connection according to GB4216.4-84 "10 bar gray cast iron pipe flange size"
